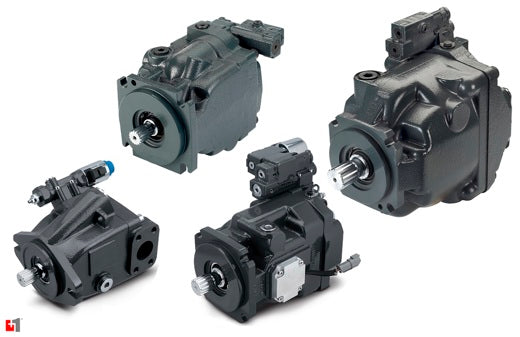

Danfoss Series 45 Piston Pumps
Roll over image to zoom in Click on image to zoom
Danfoss Series 45 Piston Pumps

Danfoss Series 45 Piston Pumps

Brand: Danfoss
Send An Enquiry Where to Buy

Description

The Danfoss Series 45 family of pumps is a high-performing and flexible solution for new machine applications that require variable-displacement, open-circuit flow in the medium-pressure range (up to 310 bar). With a complete range of displacements, control options, and mounting configurations, the modular Series 45 design helps reduce your time to market while delivering a more competitive and reliable product for your customers.

Tech Specs

Base Units
Frame Size Disp
(cc/rev)		 Part # Description Shaft D.O.R Mount Control Ports Displ
Limiters		 Comment Stocking Status
K2 25 83082988 Pump - K2-L-025C-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN ⅞" 13T 16/32DP Spline CCW SAE B 2 Bolt LS Radial Prepared Prepared for auxiliary mount Inquiry with THW
25 83082989 Pump - K2-R-025C-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN ⅞" 13T 16/32DP Spline CW SAE B 2 Bolt LS Radial Prepared Prepared for auxiliary mount THW Prefered
38 83082990 Pump - K2-L-038C-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN ⅞" 13T 16/32DPSpline CCW SAE B 2 Bolt LS Radial Prepared Prepared for auxiliary mount THW Prefered
38 83069351 Pump - K2-R-038C-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN ⅞" 13T 16/32DP Spline CW SAE B 2 Bolt LS Radial Prepared Prepared for auxiliary mount THW Prefered
38 83081767 Pump - K2-R-038C-LS-26-20-NN-N-3-K2RG-A6N-AAA-NNN-NNN ⅞" Keyed Straight - Long CW SAE B 2 Bolt LS Radial Limiter Prepared for auxiliary mount Inquiry with THW
45 83082991 Pump - K2-L-045C-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN ⅞" 13T 16/32DP Spline CCW SAE B 2 Bolt LS Radial Prepared Prepared for auxiliary mount THW Prefered
45 83071412 Pump - K2-R-045C-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN ⅞" 13T 16/32DP Spline CW SAE B 2 Bolt LS Radial Prepared Prepared for auxiliary mount THW Prefered
45 83070972 Pump - K2-R-045C-LS-21-10-NN-N-3-K2RG-A6N-PLB-NNN-NNN ⅞" Keyed Straight - Long CW SAE B 2 Bolt LS Radial Prepared Prepared for auxiliary mount Inquiry with THW
J 45 83033991 Pump - JR-R-S45B-LS-20-20-NN-N-3-K4RF-A2N-FFF-JJJ-NNN 1 ¼" Keyed Straight CW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount Inquiry with THW
60 83033988 Pump - JR-R-S60B-LS-25-20-NN-N-3-S1RF-A2N-FFF-JJJ-NNN 1 ¼" 14T 12/24DP Spline CW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount THW Prefered
60 83033986 Pump - JR-L-S60B-LS-25-20-NN-N-3-S1RF-A2N-FFF-JJJ-NNN 1 ¼" 14T 12/24DP Spline CCW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount Inquiry with THW
60 83033996 Pump - JR-R-S60B-LS-21-20-NN-N-3-K4RF-A8N-FFF-JJJ-NNN 1 ¼" Keyed Straight CW SAE B 2 Bolt LS Radial Limiter Prepared for auxiliary mount Inquiry with THW
75 83033989 Pump - JR-L-S75C-LS-20-20-NN-N-3-S1RE-A2N-NNN-JJJ-NNN 1 ¼" 14T 12/24DP Spline CCW SAE C 4 Bolt LS Radial None Prepared for auxiliary mount THW Prefered
75 83033990 Pump - JR-R-S75C-LS-20-20-NN-N-3-S1RE-A2N-NNN-JJJ-NNN 1 ¼" 14T 12/24DP Spline CW SAE C 4 Bolt LS Radial None Prepared for auxiliary mount THW Prefered
75 83034131 Pump - JR-R-S75C-LS-21-25-NN-N-3-K4BF-A9N-FFF-JJJ-NNN 1 ¼" Keyed Straight CW SAE C 2 Bolt LS Radial Limiter Prepared for SAE B, 13T Inquiry with THW
F 74 83033008 Pump - FR-L-074B-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN 1 ¼" 14T 12/24DP Spline CCW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount THW Prefered
74 83033009 Pump - FR-R-074B-LS-25-20-NN-N-3-S1R2-A1N-AAA-NNN-NNN 1 ¼" 14T 12/24DP Spline CW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount THW Prefered
90 83033038 Pump - FR-R-090C-LS-18-20-NN-N-3-K4A2-A1N-AAA-NNN-NNN 1 ¼" Keyed Straight CW SAE C 4 Bolt LS Radial Limiter Prepared for SAE A, 9T THW Prefered
E 100 83037648 Pump - ER-R-100B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN 1 ½" 17T 12/24DP Spline CW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount THW Prefered
100 83037386 Pump - ER-R-100B-LS-28-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN 1 ½" Keyed Straight CW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount THW Prefered
100 83040848 Pump - ER-L-100B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN 1 ½" 17T 12/24DP Spline CCW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount Inquiry with THW
130 83037359 Pump - ER-R-130B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN 1 ½" 17T 12/24DP Spline CW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount THW Prefered
130 83037653 Pump - ER-R-130B-LS-28-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN 1 ½" Keyed Straight CW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount Inquiry with THW
130 83040849 Pump - ER-L-130B-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN 1 ½" 17T 12/24DP Spline CCW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount Inquiry with THW
147 83037735 Pump - ER-R-147C-LS-25-20-NN-N-3-S2RP-A1N-AAA-NNN-NNN 1 ½" 17T 12/24DP Spline CW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount THW Prefered
147 83037388 Pump - ER-R-147C-LS-26-20-NN-N-3-K5RP-A1N-AAA-NNN-NNN 1 ½" Keyed Straight CW SAE C 4 Bolt LS Radial Limiter Prepared for auxiliary mount Inquiry with THW
  • Broad control options, including fan drive (FDC) and electronic torque limiting (ETL)
  • Smallest 45 cm³ [2.75 in³] package size on the market
  • Highly responsive and stable performance
  • Robust, proven designs with a long service life
  • Environmentally friendly, lead-free options
  • Extensive mounting flange, shaft and porting options

Danfoss mobile open-circuit piston pumps are designed for a wide variety of applications. Below are examples of where this product is commonly used:

Agriculture

  • Harvesters
  • Sprayers

Construction

  • Motor graders
  • Backhoe and wheel loaders

Material handling

  • Reach stackers and container handlers
  • Telehandlers

Specialty

  • Forestry forwarders and harvesters
  • Screeners and crushers
Download brochure to view dimensions
