Description

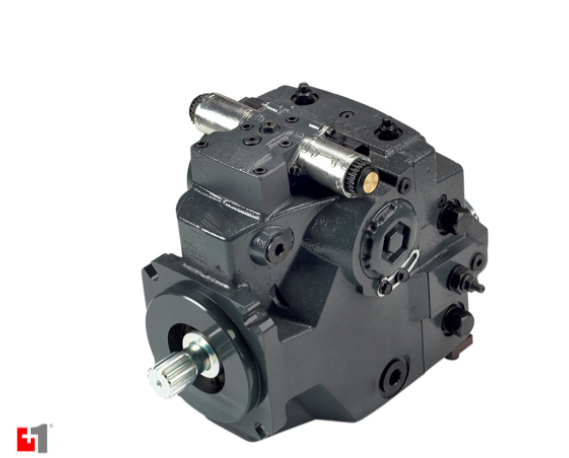

The Danfoss H1P is a closed circuit variable displacement axial piston pump built to the highest
engineering standards. Part of the renowned H1 family, the H1P draws on decades of Danfoss
expertise to deliver best-in-class performance, efficiency, and reliability for demanding mobile
hydraulic applications.
Now available in 180cc — sharing the same compact footprint as the 147cc and 165cc models —
the H1P offers greater displacement options without requiring design or installation changes.
Tech Specs
| Parameters | Description | Size 045 | Size 053 |
| Displacement | cm³ [in³] | 45.0 [2.75] | 53.8 [3.28] |
| Input speed min⁻¹ (rpm) |
Minimum | 500 | |
| Rated | 3400 | ||
| Maximum | 3500 | ||
| System pressure bar [psi] |
Max. working* | 420 [6092] | 380 [5511] |
| Maximum | 450 [6527] | 400 [5802] | |
| Min. low loop | 10 [145] | ||
| Case pressure bar [psi] |
Rated | 3.0 [44.0] | |
| Maximum | 5.0 [73.0] | ||
| Weight | (without PTO and filter), kg [lb] | 41 [90] | |
* Pressures above maximum working pressure requires Danfoss approval.
- Closed circuit variable displacement axial piston design
- Available in 147cc, 165cc, and 180cc displacements
- Consistent footprint across all three displacement sizes
- Engineered for mobile hydraulic systems with high efficiency
- Backed by Danfoss' industry-leading innovation and quality standards
The Danfoss H1P can be utilised across a myriad of equipment applications, delivering application-specific designs to fit your machine design needs. It will also lower your business risk exposure through reliable, available, proven products and system solutions. Let us prove it to you at our global Application Development Centres — come and see how the H1P can help solve your application needs.
Construction: Durable, robust design meets the demands of harsh
working conditions for applications in construction, forestry, and agriculture machines.
Material Handling: PLUS+1® delivers precision control with pump
dimensions to fit any design.
Specialty: Conversion capability fits a myriad of machine type.
