Description

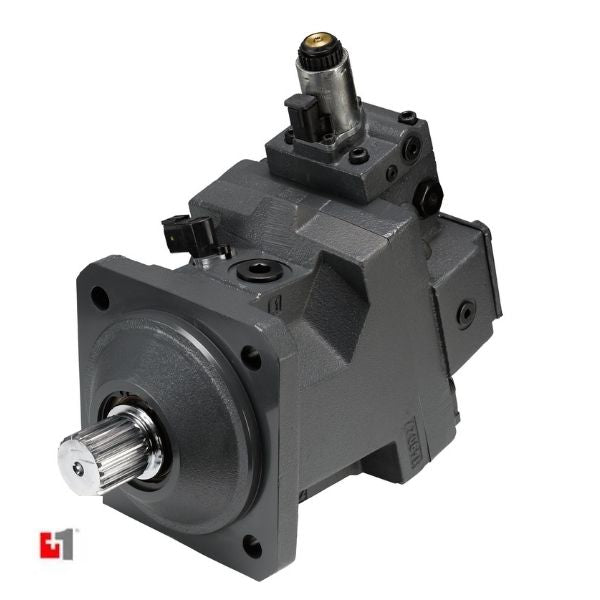

The H1B variable displacement hydraulic motor is designed for high-performance closed-circuit hydraulic systems where efficient power transfer and precise control are essential. Featuring a robust bent-axis design with spherical pistons, this motor delivers reliable operation across a wide range of demanding applications.
With a displacement ratio of up to 5:1, the H1B motor offers exceptional flexibility, providing maximum displacements from 60 cm³ to 250 cm³. This allows the motor to adapt easily to varying load and speed requirements while maintaining consistent performance.
The H1B motor supports rated output speeds of up to 2,350 rpm at maximum displacement and 4,300 rpm at zero displacement, making it ideal for applications that require both high torque and high-speed capability.
Engineered for durability and efficiency, the H1B variable displacement motor is a dependable choice for advanced hydraulic systems used in industrial, mobile, and heavy-duty environments.
Tech Specs
| Motor | Displacement (Max) cm³ [in³] |
Displacement (Min) cm³ [in³] |
Rated speed (Max) rpm |
Rated speed (Min) rpm |
Max speed (Max) rpm |
Max speed (Min) rpm |
Max working pressure bar [psi] |
Max pressure bar [psi] |
Mounting flange / Weight (dry) SAE kg [lb] |
Mounting flange / Weight (dry) DIN kg [lb] |
Mounting flange / Weight (dry) Cartridge kg [lb] |
| H1B 060 | 60 [3.66] | 12 [0.73] | 3600 | 5900 | 4500 | 7250 | 450 [6527] | 480 [6960] | 29.8 [65.8] | 28.3 [62.5] | 26.9 [58.4] |
| H1B 080 | 80 [4.88] | 16 [0.98] | 3200 | 5300 | 4100 | 6600 | 450 [6527] | 480 [6960] | 34.8 [76.9] | 34.4 [76.9] | 33.0 [72.8] |
| H1B 110 | 110 [6.71] | 22 [1.34] | 2900 | 4800 | 3700 | 5950 | 450 [6527] | 480 [6960] | 48.8 [107.8] | 45.0 [99.4] | 41.8 [92.3] |
| H1B 160 | 160 [9.76] | 32 [1.95] | 2600 | 4250 | 3300 | 5250 | 450 [6527] | 480 [6960] | 61.9 [136.5] | 59.3 [130.7] | 54.7 [120.6] |
| H1B 210 | 210 [12.81] | 42 [2.56] | 2350 | 3850 | 3000 | 4800 | 450 [6527] | 480 [6960] | 81.0 [178.6] | 75.0 [165.3] | -- |
| H1B 250 | 250 [15.25] | 50 [3.05] | 2200 | 3650 | 2800 | 4500 | 450 [6527] | 480 [6960] | 87.7 [193.3] | -- | -- |
* Applied pressures above maximum working pressure requires Danfoss application approval. High pressure ports are available in axial port design or radial port design.
- Optimised surface finish combined with a high spring rate and best-in-class components, delivering high-speed capability at minimal angle for maximum performance.
- Bent-axis design provides the shortest unit length in its class.
- Electric components feature IP67 and IP69K ratings with proven high quality, achieving only 250 DPM.
- Minimal control loss and enhanced efficiency through minimised dead volume and flow-optimised end caps and valve segments.
- One-piece housing, minimised case pressure, and a robust sync joint improve dynamic torque capability.
- Balanced 450 bar (6,527 psi) delta pressure enables machines to operate at high power, increasing overall effectiveness.
- External shaft seal accessibility, versatility, and a common H1 family design simplify replacement, conversion, and machine operation.
- Agriculture
- Construction
- Crane and material handling
- Forestry
- Heavy machinery
- Offshore oil and gas
