Danfoss Piston Axial Motors H1F
Roll over image to zoom in Click on image to zoom
Danfoss Piston Axial Motors H1F

Danfoss Piston Axial Motors H1F

Brand: Danfoss
Send An Enquiry Where to Buy

Description

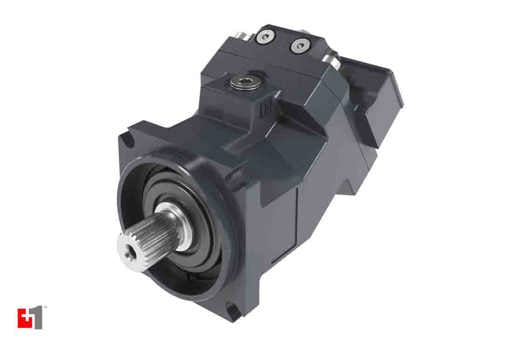

The Danfoss H1F fixed-displacement bent-axis hydraulic motor is designed for both open- and closed-circuit applications, offering a compact design, proven reliability and high efficiency of up to 95%, surpassing competing solutions across a wide range of pressure ratings and rotational speeds.



The lightweight H1F motor features a power-dense, compact envelope that allows for easy installation. With its short overall length and 32-degree bent-axis angle, the unit is among the most compact on the market, enabling machine manufacturers to reduce the space requirements of the hydraulic system.

Tech Specs

Motor Displacement Rated speed vs displacement
min-1 [rpm]		 Max speed vs displacement
min-1 [rpm]		 Max working pressure* Max pressure Mounting flange / Weight dry
kg [lb]
Max. Min. bar [psi] bar [psi] SAE DIN Cartridge
cm³ [in³] cm³ [in³] 32 6 0 32 6 0
H1B 060 60[3.66] 12[0.73] 360059006600 450072507950 450[6527] 480[6960] 29.8 [65.8] 28.3 [62.5] 26.9 [58.4]
H1B 080 80[4.88] 16[0.98] 320053005950 410066007200 450[6527] 480[6960] 34.8 [76.9] 34.4 [76.9] 33.0 [72.8]
H1B 110 110[6.71] 22[1.34] 290048005350 370059506500 450[6527] 480[6960] 48.8 [107.8] 45.0 [99.4] 41.8 [92.3]
H1B 160 160[9.76] 32[1.95] 260042504750 330052505750 450[6527] 480[6960] 61.9 [136.5] 59.3 [130.7] 54.7 [120.6]
H1B 210 210[12.81] 42[2.56] 235038504300 300048005250 450[6527] 480[6960] 81.0 [178.6] 75.0 [165.3] -
H1B 250 250[15.25] 50[3.05] 220036504050 280045004900 450[6527] 480[6960] 87.7 [193.3] - -
* Applied pressures above maximum working pressure requires Danfoss application approval.
  • Proven and optimised 9-piston rotating group, building on the legacy of H1B bent-axis motors
  • Single-piece housing
  • Optimised for lightweight construction, short length and high efficiency
  • Side, axial or twin high-pressure ports
  • Pressure port interface designed for optimal connection to valves
  • Shaft speeds up to 5,000 rpm at full working pressure
  • Optional features available, including an integrated loop flushing device and speed sensor with IP67 and IP69K ratings, using a standardised connector interface
  • Winches
  • Rollers
  • Bulldozers
  • Drill rigs
  • Fan drives and track drives
  • Agriculture and forestry equipment
  • Construction equipment
Download brochure to view dimensions
Motor Displacement Rated speed vs displacement
min-1 [rpm] Max speed vs displacement
min-1 [rpm] Max working pressure* Max pressure Mounting flange / Weight dry
kg [lb] Max. Min. bar [psi] bar [psi] SAE DIN Cartridge cm³ [in³] cm³ [in³] 32 6 0 32 6 0 H1B 060 60[3.66] 12[0.73] 360059006600 450072507950 450[6527] 480[6960] 29.8 [65.8] 28.3 [62.5] 26.9 [58.4] H1B 080 80[4.88] 16[0.98] 320053005950 410066007200 450[6527] 480[6960] 34.8 [76.9] 34.4 [76.9] 33.0 [72.8] H1B 110 110[6.71] 22[1.34] 290048005350 370059506500 450[6527] 480[6960] 48.8 [107.8] 45.0 [99.4] 41.8 [92.3] H1B 160 160[9.76] 32[1.95] 260042504750 330052505750 450[6527] 480[6960] 61.9 [136.5] 59.3 [130.7] 54.7 [120.6] H1B 210 210[12.81] 42[2.56] 235038504300 300048005250 450[6527] 480[6960] 81.0 [178.6] 75.0 [165.3] - H1B 250 250[15.25] 50[3.05] 220036504050 280045004900 450[6527] 480[6960] 87.7 [193.3] - -
* Applied pressures above maximum working pressure requires Danfoss application approval.
-->
