Description

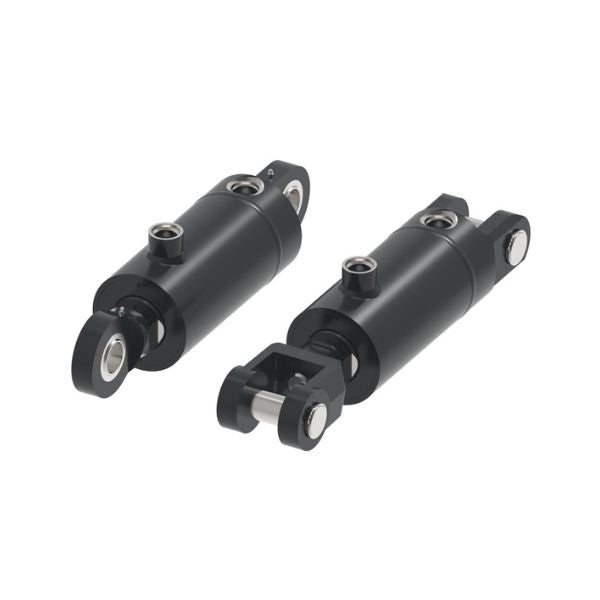

The Vickers by Danfoss W Series welded cylinders are built from high-yield strength steel with a tie-rod-free design and advanced sealing technology, engineered for durability and leak-free performance in the most demanding applications.
Tech Specs
- Welded construction
- Industrial market focus
- Robust construction - 3000 PSI
- Configurable port in cap design
- Many bore and rod combinations
- Additional options (electronic switches, rod coatings, stop tubes etc)
- Engineer-to-order available
- Available in online Configurator Dec 2022
- Engineered with a specialised end-cap welding process, high-yield strength steel, and a steel port boss to provide a full-thread, pressure-tight port connection.
- Customisable and robust, with pressure ratings up to 207 bar (3,000 psi).
- Available with additional options including electronic switches, rod coatings and stop tubes.
- Features a one-piece, piloted cast iron piston with no tie rods, reducing the build-up of dirt and debris.
- Offers stroke lengths up to 6,096 mm, with standard bore sizes ranging from 38 mm to 203 mm (larger sizes available on request).
- Mechanically loaded piston seals and innovative rod seals help prevent leakage and improve reliability.
- Configurable port-in-cap design, with a wide range of sizes, mounting options and coatings available.
The product is suitable for a wide range of applications, including:
- Balers
- Waste Processing
- Material Handling
- Oil and Gas
- Wind Turbine (Blade Pitch Axis Control)
