Description

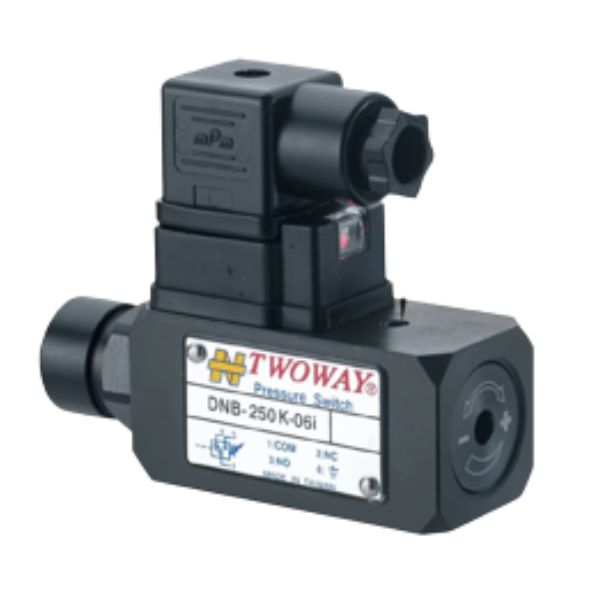

The DNB Series Pressure Switch is a reliable and compact solution for monitoring and controlling pressure in hydraulic systems. Designed with a durable cast-iron body and precision internal components, it delivers consistent switching performance across a wide range of industrial applications.
With adjustable pressure settings and multiple range options, the DNB series allows users to accurately set activation points to suit specific system requirements. Its compact design and standard 1/4" BSP connection make installation quick and straightforward.
Built for durability and long service life, the DNB pressure switch incorporates a micro-switch mechanism for dependable electrical contact, ensuring safe and efficient system operation
Tech Specs
| Model | Pres Adj. Range bar |
Surge Pres. bar |
Weight kg |
| DNB-040K-22B | 6~40 | 150 | 0.6 |
| DNB-070K-22B | 5~70 | 200 | 0.6 |
| DNB-150K-22B | 30~150 | 300 | 0.6 |
| DNB-250K-22B | 40~250 | 300 | 0.6 |
- Adjustable pressure settings for flexible control
- Robust cast-iron construction for durability
- Compact design for easy installation
- Reliable micro-switch for consistent performance
- Suitable for a wide range of hydraulic applications
- Smooth, load-independent flow control for optimal productivity and precise operation
- Energy-efficient load-sensing technology for maximum safety and extended system life
- CAN bus control for reduced installation costs and enhanced diagnostics
The Danfoss DNB Series is ideal for use in a wide range of applications, including:
Hydraulic Power Units
Industrial Machinery
Mobile Equipment
Pressure Monitoring and Safety Systems
Available in multiple pressure ranges, the DNB Series provides a dependable and cost-effective solution for pressure control in demanding environments.
